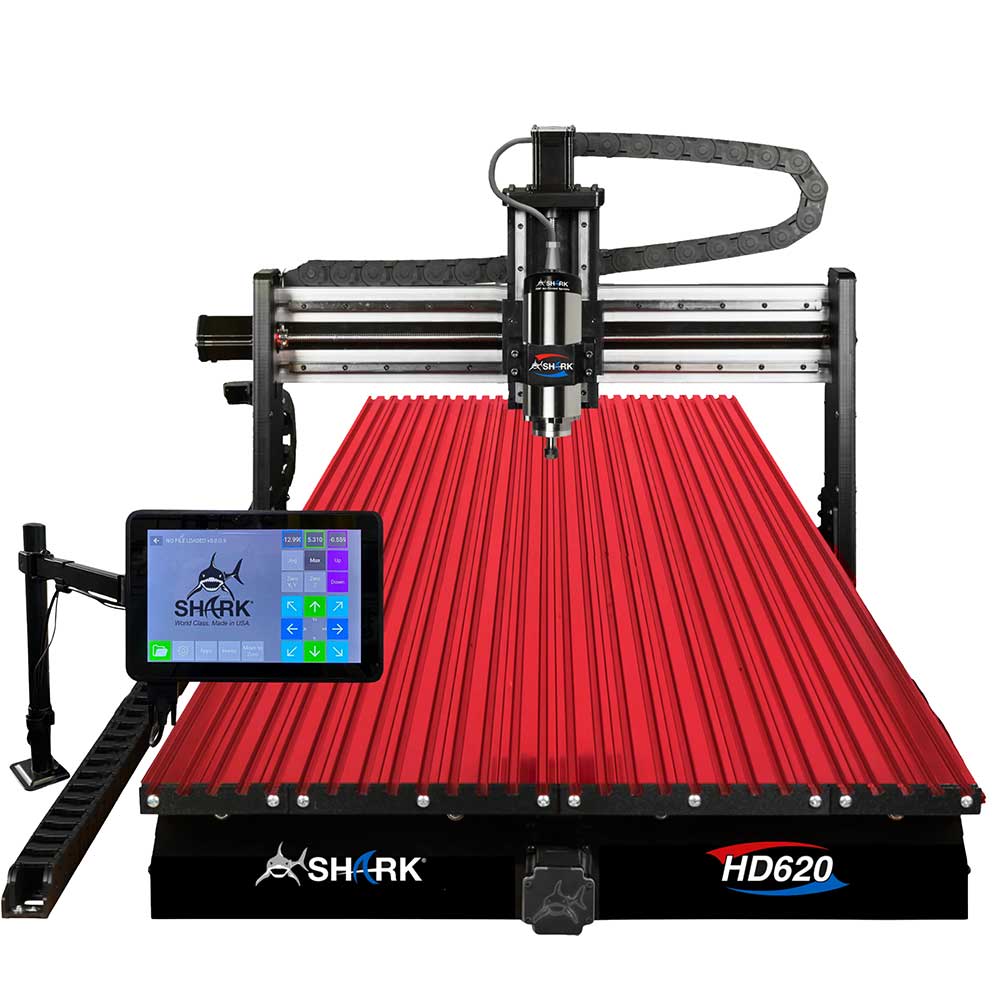

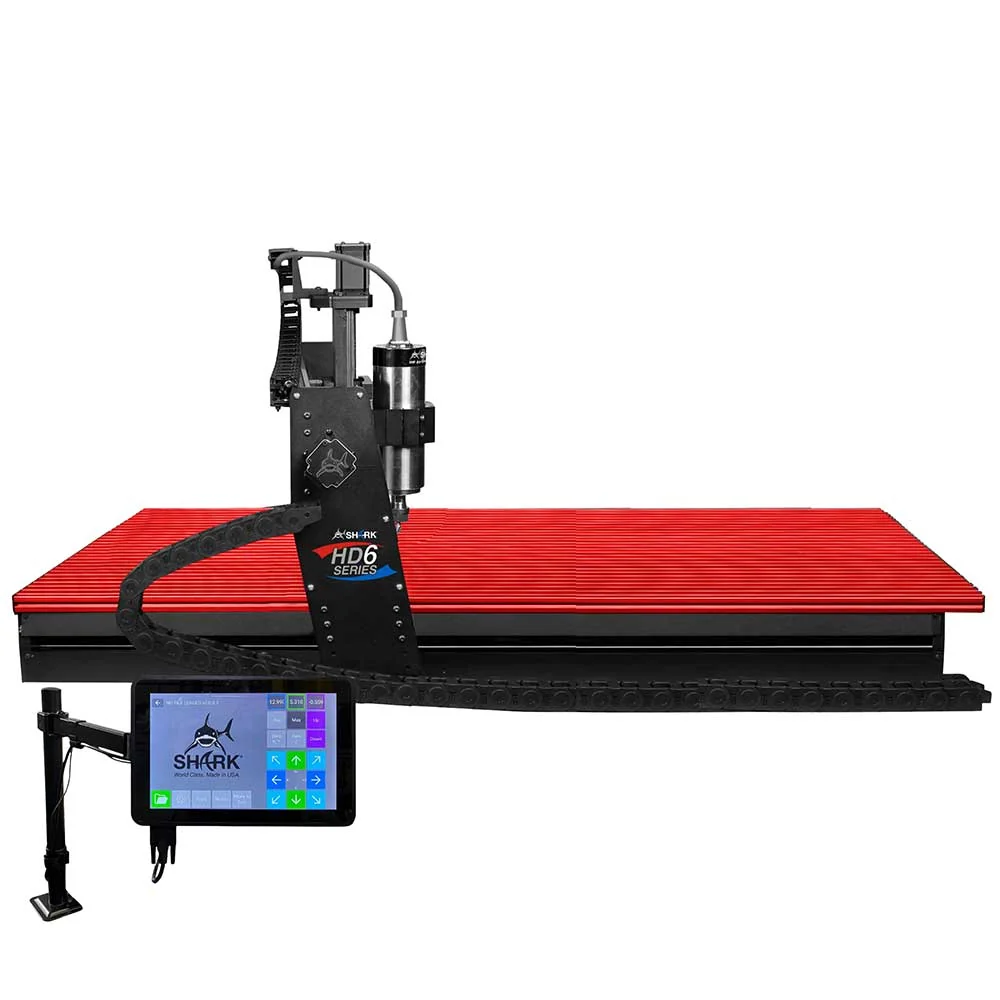

Shark HD620 PLUS CNC Machine
The Shark HD620® Plus CNC Machine brings expanded capacity and controlled power to a proven platform, making it a strong fit for a wide range of woodworkers and small production shops. This shark cnc machine increases cutting area and drive strength so you can handle larger parts without losing accuracy or surface quality.
A 50" x 25.75" x 7" cutting envelope opens the door to full-size panels and longer workpieces that smaller machines cannot accommodate. The reinforced gantry, upgraded lead screws and vibration-dampening couplers work together to maintain consistent tool paths at higher feed rates. That translates to cleaner edges, fewer passes and less time spent dialing in cuts.
The included 2 HP air-cooled spindle delivers steady torque through demanding cuts while avoiding the noise and heat of router-based setups. Paired with a 36V controller and speeds up to 600 IPM, this cnc machine wood system maintains control during both heavy stock removal and fine detail work. The Android pendant keeps machine control at the point of use, reducing trips back to a computer and improving workflow efficiency on larger jobs.
Software compatibility with VCarve Pro and other major CAM platforms keeps file preparation flexible, while Virtual Zero Unlimited® software helps correct inconsistencies in material flatness. By mapping real surface variations and adjusting toolpaths, it keeps cutting depth consistent across the full workpiece, which is critical for sign work and large panels.
Features:
- Expanded cutting capacity handles larger panels and multi-part projects
- Linear gantry rails maintain alignment across full travel
- Aluminum spindle cradle supports 80 mm diameter spindle motors
- 2 HP air-cooled spindle includes digital control and collets
- 10.1" Android pendant provides onboard control and file access
- Redesigned gantry improves long-term accuracy
- Upgraded lead screws support higher feed rates
- Precision-ground couplers reduce vibration during operation
- Larger drag chain manages cables and hoses cleanly
- Aluminum X-box improves access for adjustment and service
- Magnetic interlock side skirts allow access while maintaining safety
- 36V controller increases motor output and travel speed
- Compatible with VCarve Pro, Aspire, Fusion 360 and more
- Optional accessories available for rotary carving, laser engraving and probing
- Made in the USA with reinforced aluminum and steel construction
Specifications:
- Cutting Area: 50" x 25.75" x 7"
- Table Size: 28" x 63"
- Spindle Power: 2 HP
- Spindle Type: Air-Cooled
- Spindle Diameter Capacity: 80 mm
- Controller Voltage: 36V
- Maximum Feed Rate: 600 IPM
- Pendant Size: 10.1"
- Table Material: Interlocking Aluminum
- Frame Construction: Aluminum/Steel
- Software Included: VCarve Pro
- Additional Software: Ready2Control, Virtual Zero Unlimited®
What's Included:
- (1) Vectric VCarve Pro Software (SKU 20030)
- (1) Ready2Control Software
- (1) Virtual Zero Unlimited® Software (SKU 21205)
- (1) 2 HP Air-Cooled Spindle with Digital Control (SKU 20199)
- (1) 10.1″ Android Pendant Upgrade (SKU 21260)
- (1) Interlocking Aluminum Table
- (1) 90° Carbide V-Bit
- (2) Hold-Down Clamps
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground or Freight to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
Next Wave products can be returned if they are in unopened, resaleable condition. You will be responsible for a 25% restocking fee. If you need help initiating a return, please contact Woodcraft Customer Service at 1-800-535-4482.
